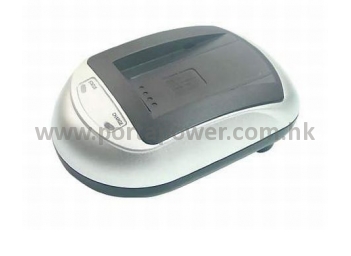

Replacement Digital Camera Battery Chargers
Specifications
Product Code:
AVMP77
Input Voltage:
100-240 V
Output Voltage:
8.4 V
Output Current:
1 A
Compatibility
PANASONIC
DE-928A DE-993A DE-994A
DE-993B DE-928B DMW-CAC1
DMW-CAC1EG
Fit Models
Digital Camera Battery Chargers
PANASONIC
DMW-BM7 BP-DC5 U BP-DC5 J
CGR-S002 DMW-BMA7 CGA-S006
CGR-S006 CGA-S002 CGA-S002A
CGA-S002E CGA-S006A CGR-S002E
CGR-S006E CGA-S006E CGR-S006GK
CGA-S002A/1B CGA-S002E/1B CGA-S006E/1B
CGR-S006E/1B CGR-S006A/1B
LEICA
BP-DC5-E


Battery Charger Description

The AVMP charger is for video camcorder and digital camera Li-ion batteries. It is suitable for different battery models to use,only to change the plate which is located on the top of the charger.



(A) How to change the charger plate

Part I: Release the charger plate


Step 1:
Press the buttons, located on the bottom of the charger.


Step 2:
Charger plate release from the base.


Step 3:
Took out the plate.

Part II: Install the new charger plate


Step 1:
Ready a new charger plate.


Step 2:
Install the front into the charger base and press the end down to the base.


Step 3:
Complete the installation.

(B) Charging method

Our Battery Charger have two charging method: AC Adapter and Car cord, They allow you to charge your battery at home or in the car conveniently.



Method 1:
Power by AC Power Adapter


Method 2:
Power by DC Car Cord

(C) Check the charging status



The LED indicator will show the charging status.

Here are the steps for using the charger

1.      Connect the supplied AC power adaptor to the DC in-jack of the battery pack charger base.

2.      Plug the AC power adaptor into a wall outlet.

3.      LED indicator "STATUS" shows RED when the charger is ready for charging.

4.      LED indicator "CHARGE" is off when the AC power adaptor is not properly plugged into a wall outlet or the DC in-jack is not securely connected to the charger base.

5.      LED indicator "CHARGE" flashes GREEN indicates that there is no battery pack placed into the charger for charging or the battery is being taken out of the charger.

6.      LED indicator "CHARGE" turns RED when the battery pack is placed into the charger for charging.

7.      LED indicator "CHARGE" flashes RED and GREEN alternatively when battery pack reaches 90%.

8.      LED indicator "CHARGE" turns steady GREEN when the battery pack is fully charged.

9.      Slide the battery pack out after the battery pack is fully charged.

10.        LED indicators "STATUS" and "CHARGE" go out after power unplugged.

11.        Before charging your battery pack, make sure that the supplied AC adapter is properly connected to the battery charger; and the LED indicators of “STATUS” & “CHARGE” on the charger base should be on.

User Manual

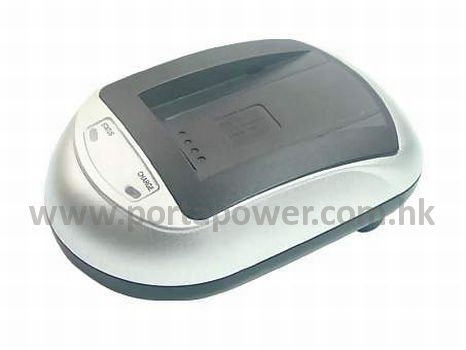

Charger Base
AVMP
Charger Base
Dimensions: 105.92 x 67.64 x 35.01 mm
Weight: 61.5 g

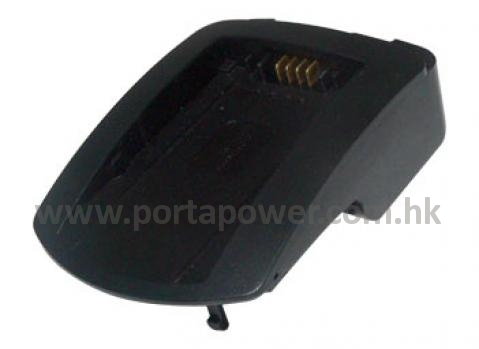

Charger Plate
AVP77
Charger Plate
Dimensions: 77.50 x 55.80 x 24.00 mm
Weight: 19 g

Adaptor
AVMPA
Adaptor
Dimensions: 83.57 x 58.27 x 78.74 mm
Weight: 548.7 g
Input Voltage: 240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1740 mm
Safety Requirements: --
AVMPE
Adaptor
Dimensions: 81.93 x 56.18 x 85.41 mm
Weight: 542.2 g
Input Voltage: 230 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1760 mm
Safety Requirements: --
AVMPK
Adaptor
Dimensions: 80.83 x 55.37 x 78.10 mm
Weight: 542.7 g
Input Voltage: 110 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1760 mm
Safety Requirements: --
AVMPSS
Adaptor
Dimensions: 71.40 x 49.60 x 49.00 mm
Weight: 115.8 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1820 mm
Safety Requirements: --
AVMPSA
Adaptor
Dimensions: 71.61 x 56.05 x 59.46 mm
Weight: 128 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1810 mm
Safety Requirements: --
AVMPSE
Adaptor
Dimensions: 71.21 x 42.47 x 67.46 mm
Weight: 104.4 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1740 mm
Safety Requirements: --
AVMPSK
Adaptor
Dimensions: 72.88 x 50.11 x 61.30 mm
Weight: 121.65 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1770 mm
Safety Requirements: --
AVMPSU
Adaptor
Dimensions: 71.26 x 42.39 x 46.82 mm
Weight: 99.4 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1750 mm
Safety Requirements: --
AVMPU
Adaptor
Dimensions: 83.82 x 58.52 x 66.99 mm
Weight: 461.1 g
Input Voltage: 220 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1750 mm
Safety Requirements: --


Combo Sets for Choice
Product Code Descriptions Weight (g)
AVMP77A AVMP + AVP77 + AVMPA 663.7
AVMP77AZ AVMP + AVP77 + AVMPA 629.2
AVMP77E AVMP + AVP77 + AVMPE 657.2
AVMP77EZ AVMP + AVP77 + AVMPE 622.7
AVMP77K AVMP + AVP77 + AVMPK 657.7
AVMP77SJ AVMP + AVP77 + AVMPSS 230.8
AVMP77SJZ AVMP + AVP77 + AVMPSS 196.3
AVMP77KZ AVMP + AVP77 + AVMPK 623.2
AVMP77SA AVMP + AVP77 + AVMPSA 243
AVMP77SAZ AVMP + AVP77 + AVMPSA 208.5
AVMP77SE AVMP + AVP77 + AVMPSE 219.4
AVMP77SEZ AVMP + AVP77 + AVMPSE 184.9
AVMP77SK AVMP + AVP77 + AVMPSK 236.65
AVMP77SKZ AVMP + AVP77 + AVMPSK 202.15
AVMP77SU AVMP + AVP77 + AVMPSU 214.4
AVMP77SUZ AVMP + AVP77 + AVMPSU 179.9
AVMP77U AVMP + AVP77 + AVMPU 576.1
AVMP77UZ AVMP + AVP77 + AVMPU 541.6
Standard Packaging
Short Code: D08
Dimensions: 84 x 44 x 105 mm
Packing Code: A06-n/a-D08
Short Code: D09
Dimensions: 180 x 112 x 65 mm
Packing Code: N/A-N/A-D09
Packing Method
White Box
Short Code: D09
Dimensions: 180 x 112 x 65 mm
Capacity: 1 pc charger
->
