Camcorder Battery Chargers
SANYO
DB-L50	DB-L50AU
TOSHIBA
PX1657	NP-120
Digital Camera Battery Chargers
RICOH
DB-43
PENTAX
D-LI7
FUJIFILM
NP-120
CONTAX
BP-1500S
KYOCERA
BP-1500S
KODAK
KLIC-5001

Battery Charger Description

The AVMP charger is for video camcorder and digital camera Li-ion batteries. It is suitable for different battery models to use,only to change the plate which is located on the top of the charger.

(A) How to change the charger plate

Part I: Release the charger plate

Step 1:
Press the buttons, located on the bottom of the charger.

Step 2:
Charger plate release from the base.

Step 3:
Took out the plate.

Part II: Install the new charger plate

Step 1:
Ready a new charger plate.

Step 2:
Install the front into the charger base and press the end down to the base.

Step 3:
Complete the installation.

(B) Charging method

Our Battery Charger have two charging method: AC Adapter and Car cord, They allow you to charge your battery at home or in the car conveniently.

Method 1:
Power by AC Power Adapter

Method 2:
Power by DC Car Cord

The LED indicator will show the charging status.

Here are the steps for using the charger

1. Connect the supplied AC power adaptor to the DC in-jack of the battery pack charger base.

2. Plug the AC power adaptor into a wall outlet.

3. LED indicator "STATUS" shows RED when the charger is ready for charging.

4. LED indicator "CHARGE" is off when the AC power adaptor is not properly plugged into a wall outlet or the DC in-jack is not securely connected to the charger base.

5. LED indicator "CHARGE" flashes GREEN indicates that there is no battery pack placed into the charger for charging or the battery is being taken out of the charger.

6. LED indicator "CHARGE" turns RED when the battery pack is placed into the charger for charging.

7. LED indicator "CHARGE" flashes RED and GREEN alternatively when battery pack reaches 90%.

8. LED indicator "CHARGE" turns steady GREEN when the battery pack is fully charged.

9. Slide the battery pack out after the battery pack is fully charged.

10. LED indicators "STATUS" and "CHARGE" go out after power unplugged.

11. Before charging your battery pack, make sure that the supplied AC adapter is properly connected to the battery charger; and the LED indicators of “STATUS” & “CHARGE” on the charger base should be on.

User Manual

Download

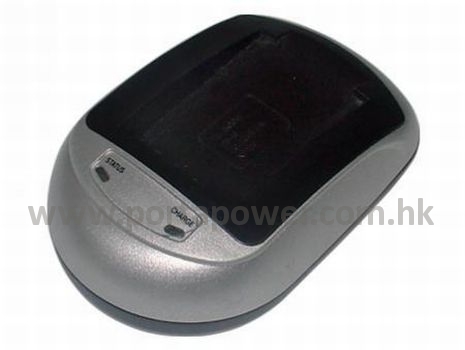

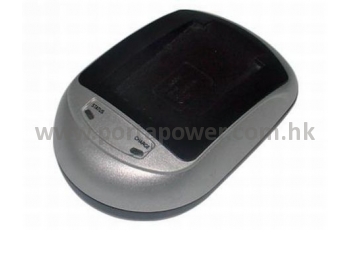

Charger Base

AVMP

Charger Base

Dimensions: 105.92 x 67.64 x 35.01 mm

Weight: 61.5 g

Charger Plate

AVP61

Charger Plate

Dimensions: 77.50 x 55.80 x 24.00 mm

Weight: 19 g

Adaptor

AVMPA Adaptor Dimensions: 83.57 x 58.27 x 78.74 mm Weight: 548.7 g Input Voltage: 240 V Output Voltage: 12 V Output Current: 1 A Cord Length: 1740 mm Safety Requirements: --	AVMPE Adaptor Dimensions: 81.93 x 56.18 x 85.41 mm Weight: 542.2 g Input Voltage: 230 V Output Voltage: 12 V Output Current: 1 A Cord Length: 1760 mm Safety Requirements: --	AVMPK Adaptor Dimensions: 80.83 x 55.37 x 78.10 mm Weight: 542.7 g Input Voltage: 110 V Output Voltage: 12 V Output Current: 1 A Cord Length: 1760 mm Safety Requirements: --	AVMPSS Adaptor Dimensions: 71.40 x 49.60 x 49.00 mm Weight: 115.8 g Input Voltage: 100-240 V Output Voltage: 12 V Output Current: 1 A Cord Length: 1820 mm Safety Requirements: --
AVMPSA Adaptor Dimensions: 71.61 x 56.05 x 59.46 mm Weight: 128 g Input Voltage: 100-240 V Output Voltage: 12 V Output Current: 1 A Cord Length: 1810 mm Safety Requirements: --	AVMPSE Adaptor Dimensions: 71.21 x 42.47 x 67.46 mm Weight: 104.4 g Input Voltage: 100-240 V Output Voltage: 12 V Output Current: 1 A Cord Length: 1740 mm Safety Requirements: --	AVMPSK Adaptor Dimensions: 72.88 x 50.11 x 61.30 mm Weight: 121.65 g Input Voltage: 100-240 V Output Voltage: 12 V Output Current: 1 A Cord Length: 1770 mm Safety Requirements: --	AVMPSU Adaptor Dimensions: 71.26 x 42.39 x 46.82 mm Weight: 99.4 g Input Voltage: 100-240 V Output Voltage: 12 V Output Current: 1 A Cord Length: 1750 mm Safety Requirements: --
AVMPU Adaptor Dimensions: 83.82 x 58.52 x 66.99 mm Weight: 461.1 g Input Voltage: 220 V Output Voltage: 12 V Output Current: 1 A Cord Length: 1750 mm Safety Requirements: --

Combo Sets for Choice

Product Code	Descriptions	Weight (g)
AVMP61A	AVMP + AVP61 + AVMPA	663.7
AVMP61AZ	AVMP + AVP61 + AVMPA	629.2
AVMP61E	AVMP + AVP61 + AVMPE	657.2
AVMP61EZ	AVMP + AVP61 + AVMPE	622.7
AVMP61K	AVMP + AVP61 + AVMPK	657.7
AVMP61SJ	AVMP + AVP61 + AVMPSS	230.8
AVMP61SJZ	AVMP + AVP61 + AVMPSS	196.3
AVMP61KZ	AVMP + AVP61 + AVMPK	623.2
AVMP61SA	AVMP + AVP61 + AVMPSA	243
AVMP61SAZ	AVMP + AVP61 + AVMPSA	208.5
AVMP61SE	AVMP + AVP61 + AVMPSE	219.4
AVMP61SEZ	AVMP + AVP61 + AVMPSE	184.9
AVMP61SK	AVMP + AVP61 + AVMPSK	236.65
AVMP61SKZ	AVMP + AVP61 + AVMPSK	202.15
AVMP61SU	AVMP + AVP61 + AVMPSU	214.4
AVMP61SUZ	AVMP + AVP61 + AVMPSU	179.9
AVMP61U	AVMP + AVP61 + AVMPU	576.1
AVMP61UZ	AVMP + AVP61 + AVMPU	541.6
