Prof. Camcorder Battery Chargers
Home >> AVMP550

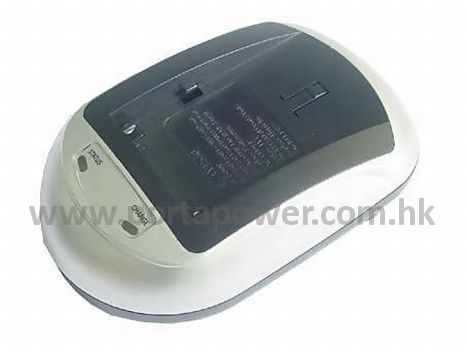

Replacement Prof. Camcorder Battery Chargers
Specifications
Product Code:
AVMP550
Input Voltage:
100-240 V
Output Voltage:
4.2 V
Output Current:
1 A
Compatibility
JVC
AA-V68 AA-V80 AA-V67
AA-V67EK AA-V80EA AA-V67EG
AA-V68KR
PANASONIC
VW-AD1 VW-AD3 LSSQ0239
LSSQ0219
SONY
AC-V700 AC-V700 BC-V500
BC-V500 BC-V615 DV-V700
PC-VM50 DC-VM50 BC-VM50
DC-VQ800 AC-V700A BC-V615A
ACV-400A AC-VQ800 AC-VQ850
AC-VQ850 AC-SQ950 AC-VQ850D
AC-V615/B AC-V900/B AC-SQ950B
AC-VQ1050B
Fit Models
Camcorder Battery Chargers
RCA
BB-65L
PANASONIC
VW-B202 VW-VBD1 VW-VBD2
PV-DBP5 AG-BP15P VW-VBD1E
VW-VBD2E CGR-B/814 CGR-B/202
CGR-B/403 CGR-B202A CGR-B/202A1B
CGR-B/202E1B
SONY
NP-F330 NP-F550 NP-F530
NP-F570 NP-F750 NP-F770
NP-F930 NP-F950 NP-QM50
NP-F960 NP-QM51 NP-F970
NP-FM50 NP-FM51 NP-FM30
NP-F950/B NP-F970/B NP-F930/B
JVC
BN-V812 BN-V814 BN-V812U
BN-V814U
HITACHI
VM-BPL13 VM-BPL27 VM-BPL30
VM-BPL60 VM-BP27A VM-BPL13A
VM-BPL13J VM-BPL27A
Digital Camera Battery Chargers
SONY
NP-FM500H

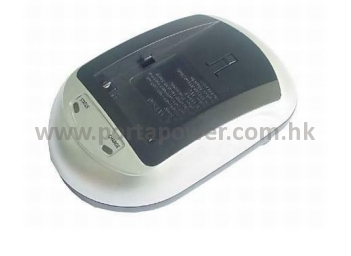

Battery Charger Description

The AVMP charger is for video camcorder and digital camera Li-ion batteries. It is suitable for different battery models to use,only to change the plate which is located on the top of the charger.



(A) How to change the charger plate

Part I: Release the charger plate


Step 1:
Press the buttons, located on the bottom of the charger.


Step 2:
Charger plate release from the base.


Step 3:
Took out the plate.

Part II: Install the new charger plate


Step 1:
Ready a new charger plate.


Step 2:
Install the front into the charger base and press the end down to the base.


Step 3:
Complete the installation.

(B) Charging method

Our Battery Charger have two charging method: AC Adapter and Car cord, They allow you to charge your battery at home or in the car conveniently.



Method 1:
Power by AC Power Adapter


Method 2:
Power by DC Car Cord

(C) Check the charging status



The LED indicator will show the charging status.

Here are the steps for using the charger

1.      Connect the supplied AC power adaptor to the DC in-jack of the battery pack charger base.

2.      Plug the AC power adaptor into a wall outlet.

3.      LED indicator "STATUS" shows RED when the charger is ready for charging.

4.      LED indicator "CHARGE" is off when the AC power adaptor is not properly plugged into a wall outlet or the DC in-jack is not securely connected to the charger base.

5.      LED indicator "CHARGE" flashes GREEN indicates that there is no battery pack placed into the charger for charging or the battery is being taken out of the charger.

6.      LED indicator "CHARGE" turns RED when the battery pack is placed into the charger for charging.

7.      LED indicator "CHARGE" flashes RED and GREEN alternatively when battery pack reaches 90%.

8.      LED indicator "CHARGE" turns steady GREEN when the battery pack is fully charged.

9.      Slide the battery pack out after the battery pack is fully charged.

10.        LED indicators "STATUS" and "CHARGE" go out after power unplugged.

11.        Before charging your battery pack, make sure that the supplied AC adapter is properly connected to the battery charger; and the LED indicators of “STATUS” & “CHARGE” on the charger base should be on.

User Manual


Charger Base
AVMP
Charger Base
Dimensions: 105.92 x 67.64 x 35.01 mm
Weight: 61.5 g

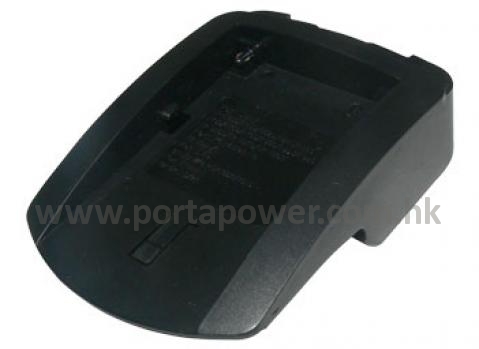

Charger Plate
AVP550
Charger Plate
Dimensions: 77.50 x 55.80 x 24.00 mm
Weight: 19 g

Adaptor
AVMPA
Adaptor
Dimensions: 83.57 x 58.27 x 78.74 mm
Weight: 548.7 g
Input Voltage: 240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1740 mm
Safety Requirements: --
AVMPE
Adaptor
Dimensions: 81.93 x 56.18 x 85.41 mm
Weight: 542.2 g
Input Voltage: 230 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1760 mm
Safety Requirements: --
AVMPK
Adaptor
Dimensions: 80.83 x 55.37 x 78.10 mm
Weight: 542.7 g
Input Voltage: 110 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1760 mm
Safety Requirements: --
AVMPSS
Adaptor
Dimensions: 71.40 x 49.60 x 49.00 mm
Weight: 115.8 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1820 mm
Safety Requirements: --
AVMPSA
Adaptor
Dimensions: 71.61 x 56.05 x 59.46 mm
Weight: 128 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1810 mm
Safety Requirements: --
AVMPSE
Adaptor
Dimensions: 71.21 x 42.47 x 67.46 mm
Weight: 104.4 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1740 mm
Safety Requirements: --
AVMPSK
Adaptor
Dimensions: 72.88 x 50.11 x 61.30 mm
Weight: 121.65 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1770 mm
Safety Requirements: --
AVMPSU
Adaptor
Dimensions: 71.26 x 42.39 x 46.82 mm
Weight: 99.4 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1750 mm
Safety Requirements: --
AVMPU
Adaptor
Dimensions: 83.82 x 58.52 x 66.99 mm
Weight: 461.1 g
Input Voltage: 220 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1750 mm
Safety Requirements: --


Combo Sets for Choice
Product Code Descriptions Weight (g)
AVMP550A AVMP + AVP550 + AVMPA 663.7
AVMP550AZ AVMP + AVP550 + AVMPA 629.2
AVMP550E AVMP + AVP550 + AVMPE 657.2
AVMP550EZ AVMP + AVP550 + AVMPE 622.7
AVMP550K AVMP + AVP550 + AVMPK 657.7
AVMP550SS AVMP + AVP550 + AVMPSS 230.8
AVMP550SSZ AVMP + AVP550 + AVMPSS 196.3
AVMP550KZ AVMP + AVP550 + AVMPK 623.2
AVMP550SA AVMP + AVP550 + AVMPSA 243
AVMP550SAZ AVMP + AVP550 + AVMPSA 208.5
AVMP550SE AVMP + AVP550 + AVMPSE 219.4
AVMP550SEZ AVMP + AVP550 + AVMPSE 184.9
AVMP550SK AVMP + AVP550 + AVMPSK 236.65
AVMP550SKZ AVMP + AVP550 + AVMPSK 202.15
AVMP550SU AVMP + AVP550 + AVMPSU 214.4
AVMP550SUZ AVMP + AVP550 + AVMPSU 179.9
AVMP550U AVMP + AVP550 + AVMPU 576.1
AVMP550UZ AVMP + AVP550 + AVMPU 541.6
Standard Packaging
Short Code: D08
Dimensions: 84 x 44 x 105 mm
Packing Code: A06-n/a-D08
Short Code: D09
Dimensions: 180 x 112 x 65 mm
Packing Code: N/A-N/A-D09
Packing Method
White Box
Short Code: D09
Dimensions: 180 x 112 x 65 mm
Capacity: 1 pc charger
->
