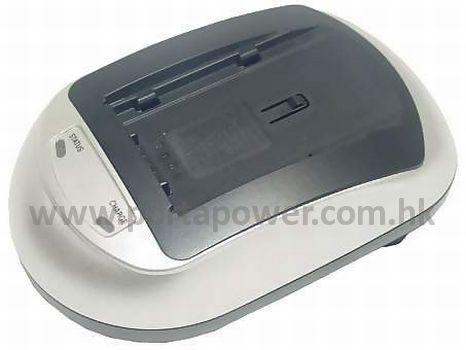

Replacement Camcorder Battery Chargers
Specifications
Product Code:
AVMP407
Input Voltage:
100-240 V
Output Voltage:
8.4 V
Output Current:
1 A
Compatibility
HITACHI
DZ-ACS1 DZ-ACS2 DZ-ACS2(E)
PANASONIC
DE-A38G PV-DAC13 PV-DAC14
VSK0651B
Fit Models
Camcorder Battery Chargers
HITACHI
DZ-BP7S DZ-BP07P DZ-BP7SJ
DZ-BP14S DZ-BP07S DZ-BP7SW
DZ-BP07PW DZ-BP21SJ DZ-BP14SW
DZ-BP14SJ
PANASONIC
CGA-DU21 CGR-DU06 CGA-DU14
CGA-DU06 CGA-DU07 CGA-DU12
CGR-DU07 CGA-DU07A VW-VBD210
VW-VBD140 CGA-DU21A VW-VBD070
CGA-DU14A VW-VBD120-H CGA-DU12E/1B
CGR-DU06E/1B CGA-DU21A/1B CGA-DU21E/1B
CGA-DU14A/1B CGA-DU07A/1B CGA-DU07E/1B
CGA-DU06A/1B CGA-DU12A/1B CGA-DU14E/1B


Battery Charger Description

The AVMP charger is for video camcorder and digital camera Li-ion batteries. It is suitable for different battery models to use,only to change the plate which is located on the top of the charger.



(A) How to change the charger plate

Part I: Release the charger plate


Step 1:
Press the buttons, located on the bottom of the charger.


Step 2:
Charger plate release from the base.


Step 3:
Took out the plate.

Part II: Install the new charger plate


Step 1:
Ready a new charger plate.


Step 2:
Install the front into the charger base and press the end down to the base.


Step 3:
Complete the installation.

(B) Charging method

Our Battery Charger have two charging method: AC Adapter and Car cord, They allow you to charge your battery at home or in the car conveniently.



Method 1:
Power by AC Power Adapter


Method 2:
Power by DC Car Cord

(C) Check the charging status



The LED indicator will show the charging status.

Here are the steps for using the charger

1.      Connect the supplied AC power adaptor to the DC in-jack of the battery pack charger base.

2.      Plug the AC power adaptor into a wall outlet.

3.      LED indicator "STATUS" shows RED when the charger is ready for charging.

4.      LED indicator "CHARGE" is off when the AC power adaptor is not properly plugged into a wall outlet or the DC in-jack is not securely connected to the charger base.

5.      LED indicator "CHARGE" flashes GREEN indicates that there is no battery pack placed into the charger for charging or the battery is being taken out of the charger.

6.      LED indicator "CHARGE" turns RED when the battery pack is placed into the charger for charging.

7.      LED indicator "CHARGE" flashes RED and GREEN alternatively when battery pack reaches 90%.

8.      LED indicator "CHARGE" turns steady GREEN when the battery pack is fully charged.

9.      Slide the battery pack out after the battery pack is fully charged.

10.        LED indicators "STATUS" and "CHARGE" go out after power unplugged.

11.        Before charging your battery pack, make sure that the supplied AC adapter is properly connected to the battery charger; and the LED indicators of “STATUS” & “CHARGE” on the charger base should be on.

User Manual

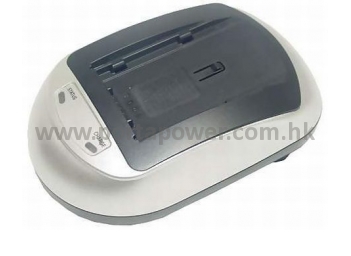

Charger Base
AVMP
Charger Base
Dimensions: 105.92 x 67.64 x 35.01 mm
Weight: 61.5 g

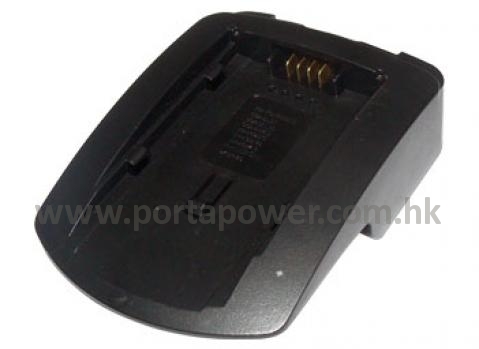

Charger Plate
AVP407
Charger Plate
Dimensions: 77.50 x 55.80 x 24.00 mm
Weight: 19 g

Adaptor
AVMPA
Adaptor
Dimensions: 83.57 x 58.27 x 78.74 mm
Weight: 548.7 g
Input Voltage: 240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1740 mm
Safety Requirements: --
AVMPE
Adaptor
Dimensions: 81.93 x 56.18 x 85.41 mm
Weight: 542.2 g
Input Voltage: 230 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1760 mm
Safety Requirements: --
AVMPK
Adaptor
Dimensions: 80.83 x 55.37 x 78.10 mm
Weight: 542.7 g
Input Voltage: 110 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1760 mm
Safety Requirements: --
AVMPSS
Adaptor
Dimensions: 71.40 x 49.60 x 49.00 mm
Weight: 115.8 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1820 mm
Safety Requirements: --
AVMPSA
Adaptor
Dimensions: 71.61 x 56.05 x 59.46 mm
Weight: 128 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1810 mm
Safety Requirements: --
AVMPSE
Adaptor
Dimensions: 71.21 x 42.47 x 67.46 mm
Weight: 104.4 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1740 mm
Safety Requirements: --
AVMPSK
Adaptor
Dimensions: 72.88 x 50.11 x 61.30 mm
Weight: 121.65 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1770 mm
Safety Requirements: --
AVMPSU
Adaptor
Dimensions: 71.26 x 42.39 x 46.82 mm
Weight: 99.4 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1750 mm
Safety Requirements: --
AVMPU
Adaptor
Dimensions: 83.82 x 58.52 x 66.99 mm
Weight: 461.1 g
Input Voltage: 220 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1750 mm
Safety Requirements: --


Combo Sets for Choice
Product Code Descriptions Weight (g)
AVMP407A AVMP + AVP407 + AVMPA 663.7
AVMP407AZ AVMP + AVP407 + AVMPA 629.2
AVMP407E AVMP + AVP407 + AVMPE 657.2
AVMP407EZ AVMP + AVP407 + AVMPE 622.7
AVMP407K AVMP + AVP407 + AVMPK 657.7
AVMP407SS AVMP + AVP407 + AVMPSS 230.8
AVMP407SSZ AVMP + AVP407 + AVMPSS 196.3
AVMP407KZ AVMP + AVP407 + AVMPK 623.2
AVMP407SA AVMP + AVP407 + AVMPSA 243
AVMP407SAZ AVMP + AVP407 + AVMPSA 208.5
AVMP407SE AVMP + AVP407 + AVMPSE 219.4
AVMP407SEZ AVMP + AVP407 + AVMPSE 184.9
AVMP407SK AVMP + AVP407 + AVMPSK 236.65
AVMP407SKZ AVMP + AVP407 + AVMPSK 202.15
AVMP407SU AVMP + AVP407 + AVMPSU 214.4
AVMP407SUZ AVMP + AVP407 + AVMPSU 179.9
AVMP407U AVMP + AVP407 + AVMPU 576.1
AVMP407UZ AVMP + AVP407 + AVMPU 541.6
Standard Packaging
Short Code: D08
Dimensions: 84 x 44 x 105 mm
Packing Code: A06-n/a-D08
Short Code: D09
Dimensions: 180 x 112 x 65 mm
Packing Code: N/A-N/A-D09
Packing Method
White Box
Short Code: D09
Dimensions: 180 x 112 x 65 mm
Capacity: 1 pc charger
->
