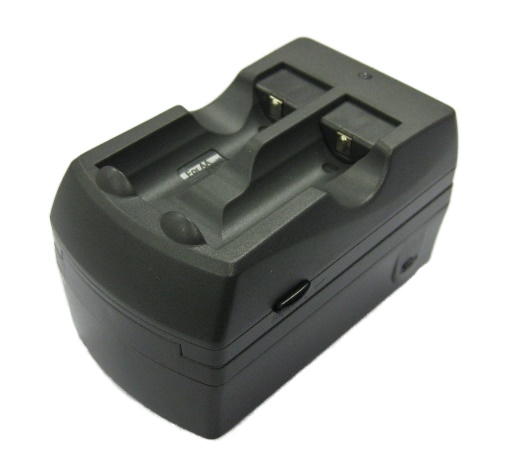

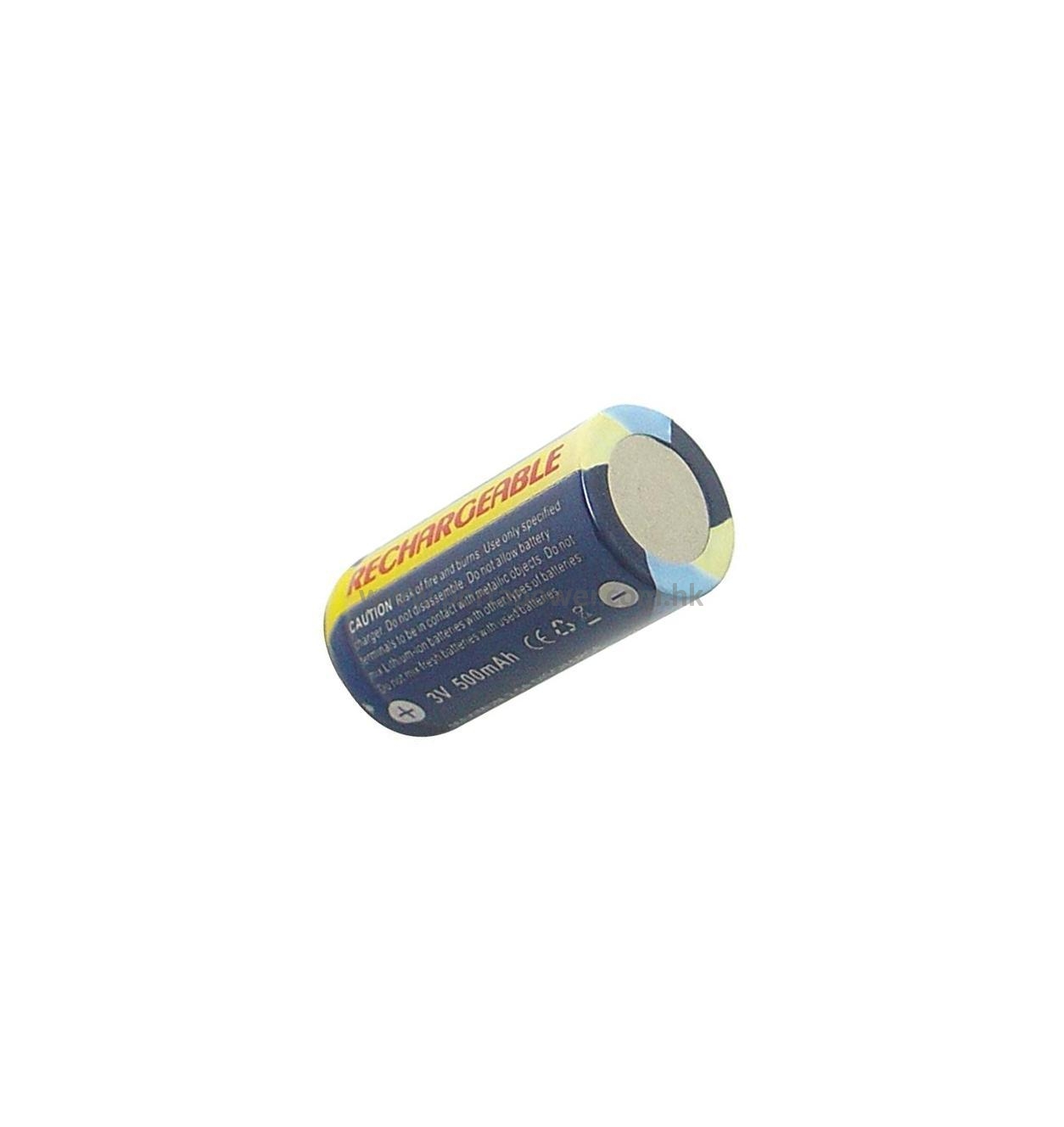

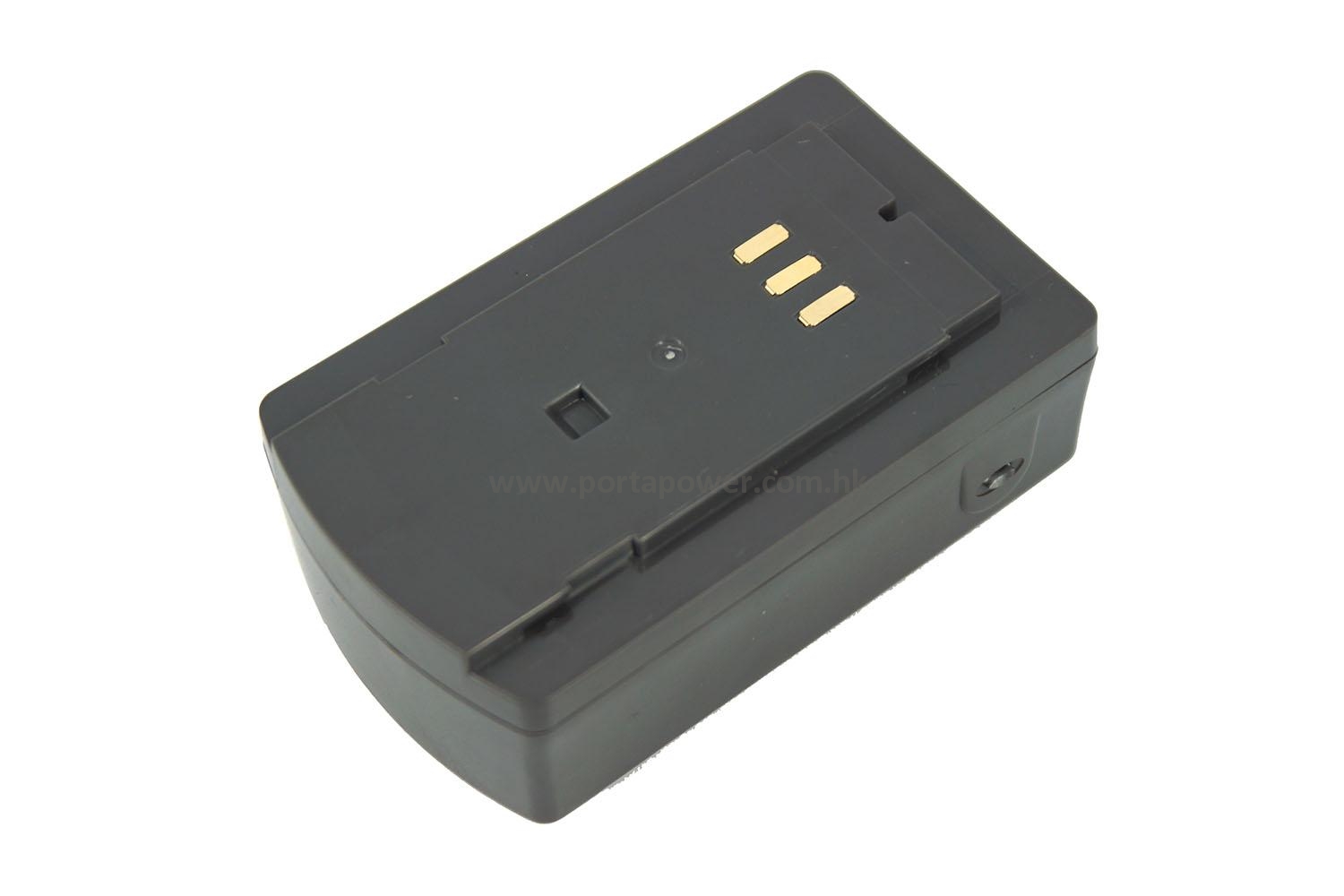

The ACFRB charger can only charge our Rechargeable Photo Lithium Batteries, and not allow to use for other primary photo lithium battery or
other band rechargeable lithium battery. The charger can charge the plate to charge another models of our rechargeable battery, only to charge
the plate which is located on the top of the charger.
(A) How to change the charger plate
Part I: Release the charger plate
Step 1:
Press and hold the lock button to release the interchangeable charger plate.
Step 2:

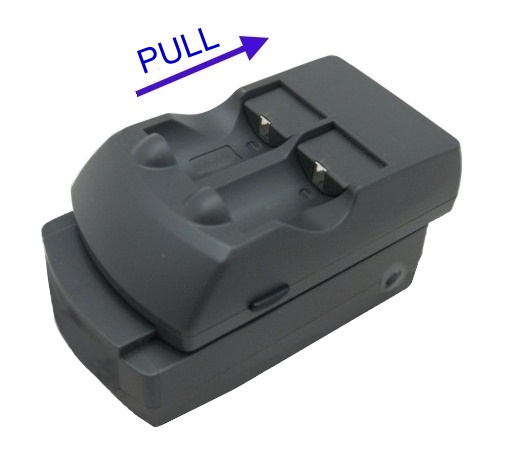

Pull the released interchangeable charger plate out of the slot.
Step 3:

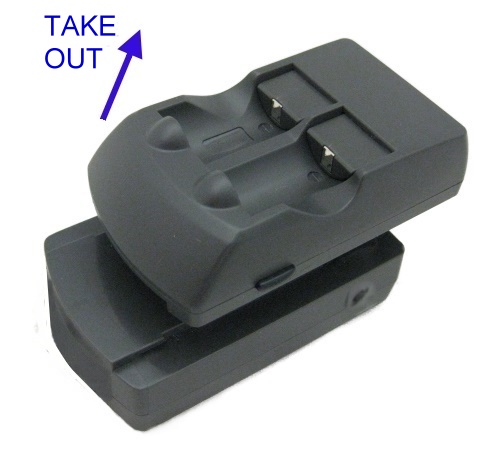

Take the interchangeable charger plate out.
Part II: Install the new charger plate
Step 1:

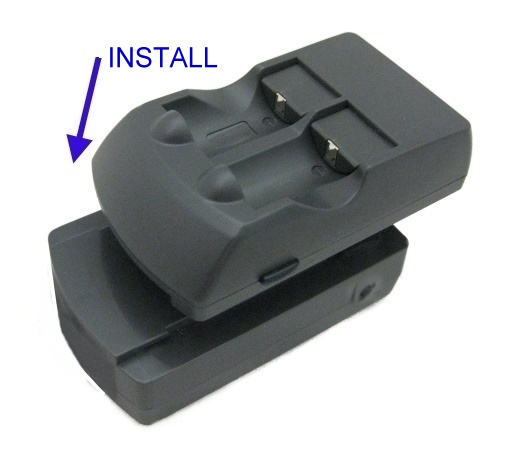

Attach the selected interchangeable charger plate onto the charger base from the top into the slots
Step 2:

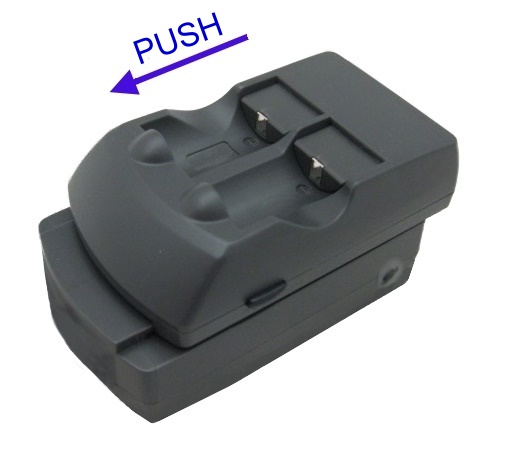

Push the interchangeable charger plate fully in the direction as shown in the above diagram.
Step 3:
The interchangeable charger plate is fully inserted into the charger base only when you hear the sound “click”.
(B) Charging Method

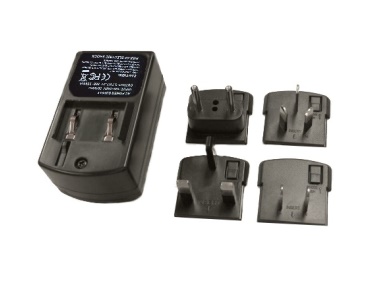

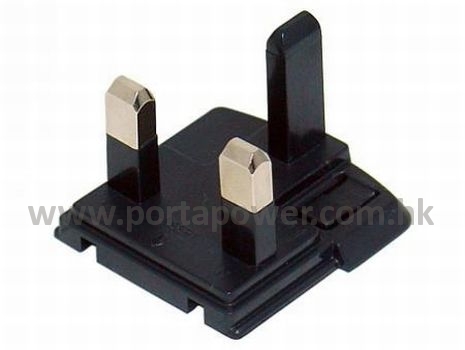

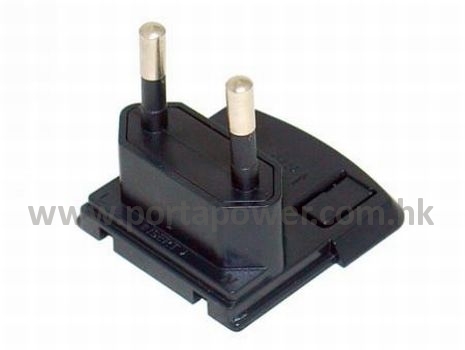

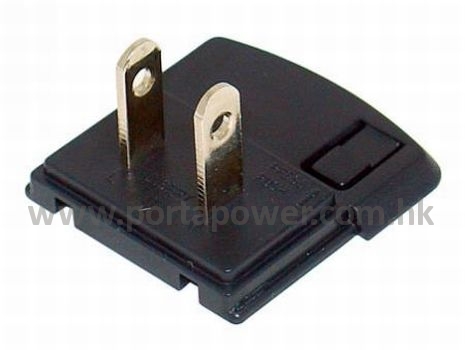

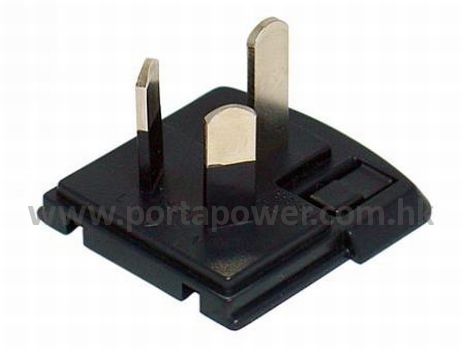

1. Choose the correct input plug.

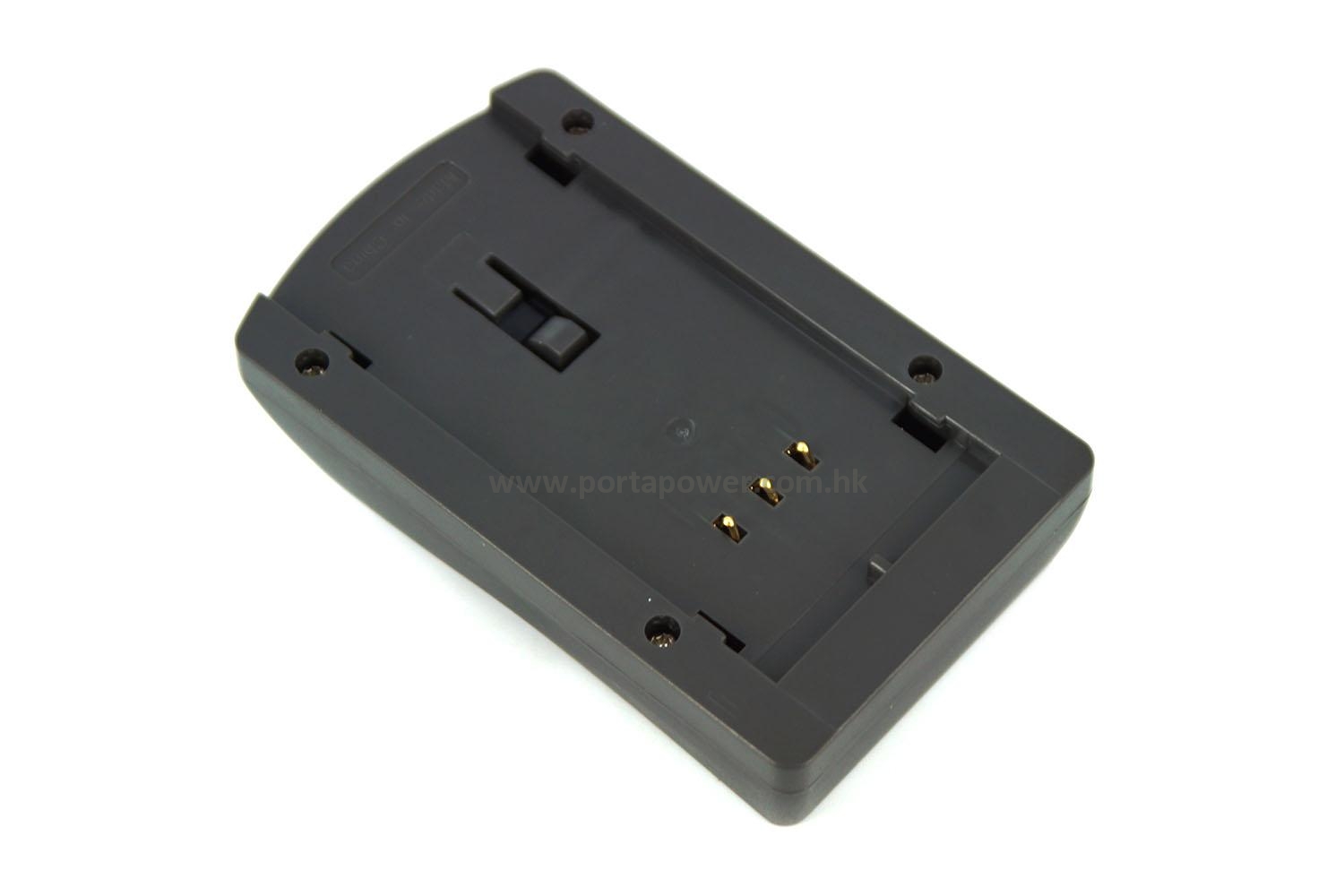

2. Install input plug to the bottom of charger base.
3. Plug the charger in a wall outlet and start to
charge your battery.
(C) Check the Charging Status

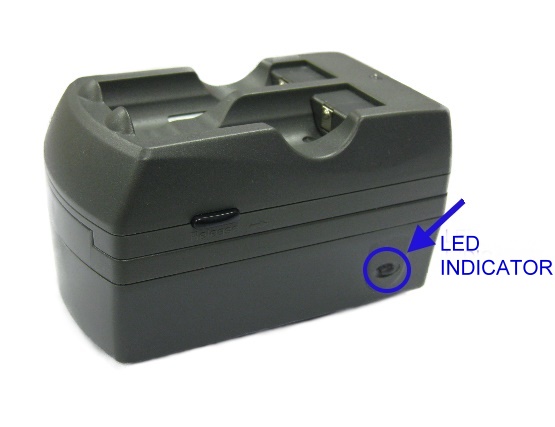

The LED indicator will show the charging status.
Here are the steps for using the charger
1. Choose the correct input plug and install to the bottom of charger base.

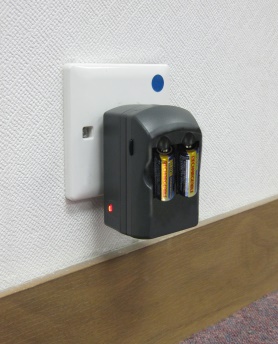

2. Plug the Charger into the wall outlet.
3. The LED indicator show flashing GREEN when waiting for battery pack.
4. Slide battery pack into the charger the LED indicator turns RED when charging.
5. LED indicator flashes RED and GREEN alternatively when battery pack has been charged over 90%.
6. When the battery pack is fully charged, the LED indicator turns as below status:
(a) Charger for ( FR123U / FR2U / FR3B ) the LED indicator turns flashing GREEN.
(b) Charger for ( FR4B/I , FR5B/I ) the LED indicator turns steady GREEN.
7. After the battery pack fully charged, slide the battery pack out from the charger and unplug the charger from the outlet.
