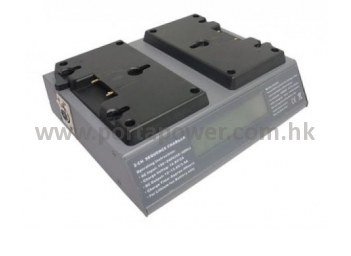

Charger Operation

The charger is a dual ports sequential quick charger that will fully charge the Li-ion batteries in approximately 4 hours. It can charge 2 batteries sequentially.
The sequence for battery charging at channel 1 then progresses to channel 2 and then back to channel 1 again. It automatically searches each channel in continuous
loop for battery charging sequence loop is interrupted only by the detection of valid battery to be charged.

Operating Instructions


Step 1:

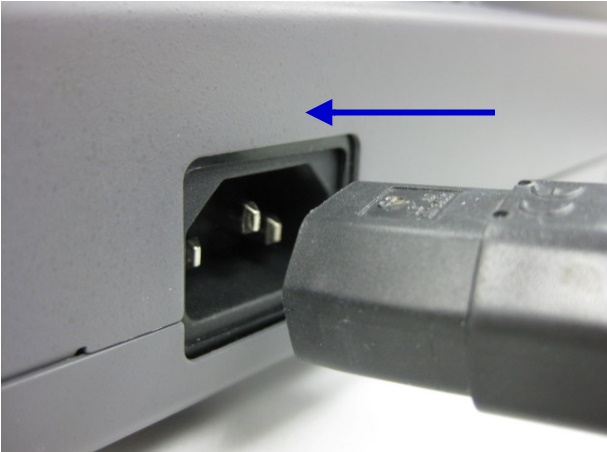

Connect the supplied AC power cord firmly into the AC input jack and wall outlet.


Step 2:

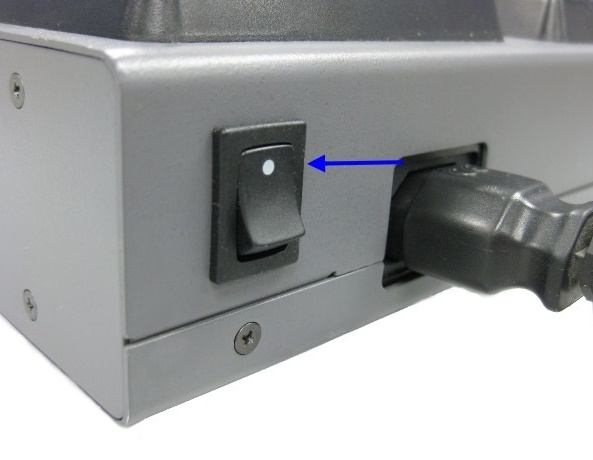

Press the main power switch at the rear of the charger down to the white dot direction. The LCD display will light and show "AVNL190 CHARGE FOR LI-ION".


Step 3:

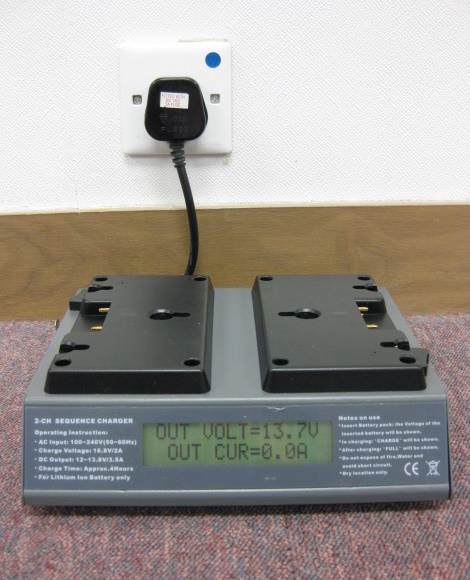

When the charger waiting for battery, the LCD display will show output voltage and output current.


Step 4:(A)

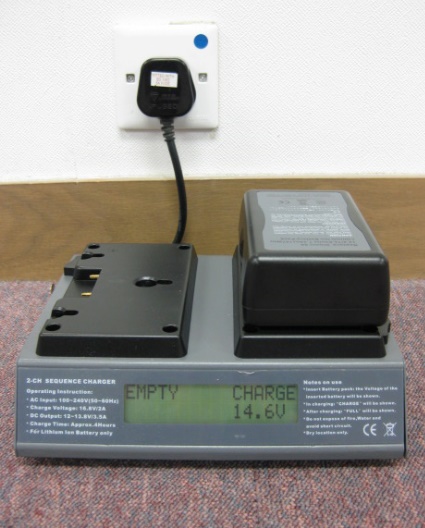

Sliding the battery pack in the battery socket until it is fully mounted. The word "CHARGE" and battery status (voltage and percentage of capacity shows alternately) will be shown on the LCD display.


(B)

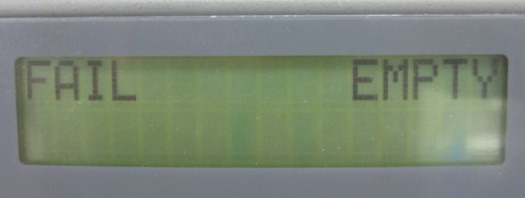

If the word "FAIL" show, means the battery is faulty one.


Step 5:

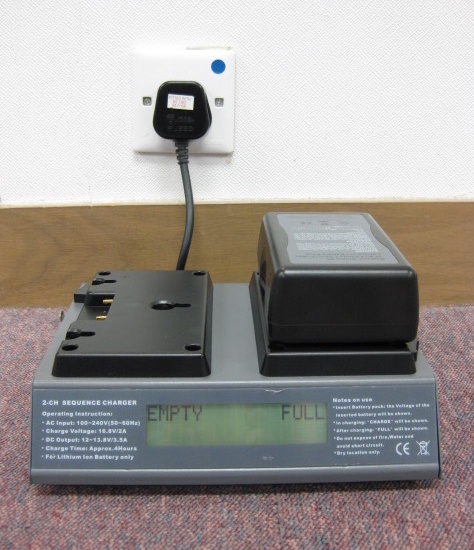

When the battery is fully charged, the word "FULL" will show on the LCD display instead of "CHARGE". Push the release lock in the side of the battery socket and slide out the battery pack. After charged the battery, turn off the charger and disconnect the AC power cord from the charger and the wall outlet .

Safety Instructions and Warning

- Do not place anything on the top of the charger; do not block ventilation holes when charger in use.
- This is normal during charging the temperature of the charger will rise.
- Be sure to insert battery into the battery socket firmly.
- Do not attempt to charge faulty batteries or batteries with incorrect specifications.
- Do not expose the charger to direct sunlight, and use the charger in well-ventilated place.
- Do not open the unit or attempt to repair any malfunction, there are dangerous power supply circuits inside. There are no user serviceable parts inside.
- Avoid using the charger near equipment that generates noise, such as TV set... etc.
- The charger should be turned on prior to batteries insert.



* Photos are for reference only.

User Manual


Charger Base
AVNL
Charger Base
Dimensions: --
Weight: 0 g

Charger Plate
AVL190
Charger Plate
Dimensions: 227.00 x 191.00 x 75.00 mm
Weight: 1680 g

Adaptor
JA
Adaptor
Dimensions: --
Weight: 108.3 g
Input Voltage: --
Output Voltage: --
Output Current: --
Cord Length: 103.5 mm
Safety Requirements: --
JE
Adaptor
Dimensions: --
Weight: 137.7 g
Input Voltage: --
Output Voltage: --
Output Current: --
Cord Length: 103 mm
Safety Requirements: --
JK
Adaptor
Dimensions: --
Weight: 145.4 g
Input Voltage: --
Output Voltage: --
Output Current: --
Cord Length: 101 mm
Safety Requirements: --
JU
Adaptor
Dimensions: --
Weight: 116.85 g
Input Voltage: --
Output Voltage: --
Output Current: --
Cord Length: 100 mm
Safety Requirements: --


Combo Sets for Choice
Product Code Descriptions Weight (g)
AVNL190A AVNL + AVL190 + JA 1788.3
AVNL190E AVNL + AVL190 + JE 1817.7
AVNL190K AVNL + AVL190 + JK 1825.4
AVNL190U AVNL + AVL190 + JU 1796.85
Standard Packaging
Short Code: ----

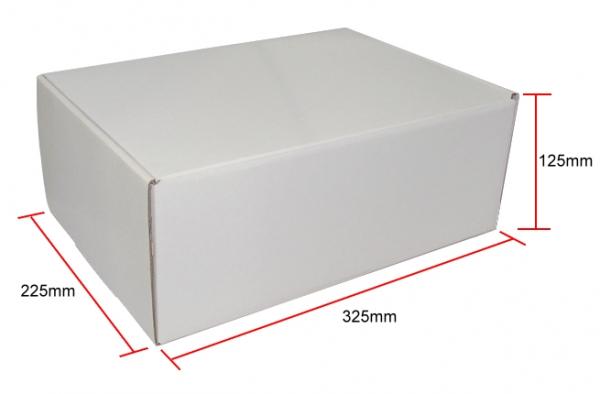

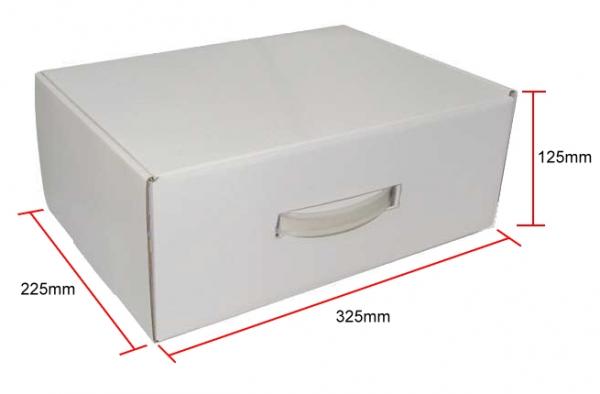

Dimensions: 325 x 225 x 125 mm
