Camcorder Battery Chargers
Home >> AVHMX
Replacement Camcorder Battery Chargers
Specifications
Product Code:
AVHMX
Input Voltage:
100-240 V
Output Voltage:
7 V
Output Current:
1 A
Compatibility
JVC
AA-V16 AA-V15 AA-V15U
AA-V35U AA-V15EG AA-V11EG
PANASONIC
PV-A19
Fit Models
Camcorder Battery Chargers
PANASONIC
BP-15 BP-17 BP-18
BP-12 PV-B18 PV-BP15
PV-213A PV-BP17 PV-214A
PV-215A VW-VBS1 VW-VBS2
VW-VBH1E VW-VBH2E VW-VBR1E
VW-VBR2E VW-VBS1E VW-VBS2E
HHR-V20A/1B HHR-V214A/K HHR-V40A/1B
SHARP
BT-80 BT-77 BT-70
BT-70BK BT-80BK BT-BH70
BT-80SBK
SONY
NP-55 NP-66 NP-68
NP-33 NP-67 NP-77
NP-98 NP-78 NP-77H
NP-98D NP-66H NP-C65
NP-55H NP-77HD
JVC
BN-V12 BN-V15 BN-V20
BN-V22 BN-V25 BNV60U
BN-V65 BN-V12U BN-V14U
BN-V18U BN-V20U BN-V22U
BN-V24U BN-V25U BN-V11U
BN-V20US BN-V400B BN-V140U
BN-V400U
SAMSUNG
NC-240 SCA-12 VP-A20
NB-E60
MULTI-FIT(S)
FIT SHARP FIT SAMSUNG FIT PANASONIC
TWO-WAYS
FIT SHARP FIT PANASONIC


Battery Charger Description

The AVHM charger is compatible for video camcorder and digital camera Ni-CD & Ni-MH batteries. It is suitable for different battery models to use,

only to change the plate which is located on the top of the charger.



(A) How to Install the battery.




Step 1:
Confirm both of the battery and charger contacts are in the same position.


Step 2:
Install the battery on the charger and push it untill to lock.


Step 3:
Complete the installation.

(B) Charging Method

Our Battery Charger have two charging method: AC Adapter and Car cord, They allow you to charge your battery at home or in the car conveniently.



Method 1:
Power by AC Power Adapter


Method 2:
Power by DC Car Cord




(C) Check the Charging Status



The LED indicator will show the charging status.

Here are the steps for using the charger

1. Plug the AC Adapter into the wall outlet or the DC car cord to the automobile cigarette socket.
2. Connect the AC Adapter or car cord to the charger DC in-jack.
3. The "Power" LED indicator show RED when waiting for battery pack.
4. Slide battery pack into the charger and press Discharge button to discharge the battery. The "Discharge" LED indicator will glow Orange.
5. When the battery is fully discharged, the charger will switch automatically to charge the battery. The "charge" LED indicator
        will flashes RED when charging, and "Discharge" LED indicator will not glow.

6. When the battery pack is fully charged, the "Charge" LED indicator turns steady GREEN.

7. After the battery pack fully charged, slide the battery pack out from the charger and disconnect the power adapter from the outlet.

User Manual

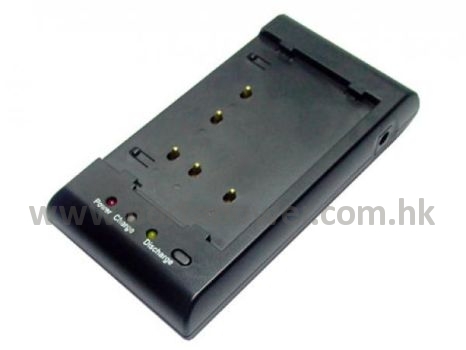

Charger Base
AVHM
Charger Base
Dimensions: 136.00 x 72.00 x 25.00 mm
Weight: 103.2 g

Adaptor
AVMPA
Adaptor
Dimensions: 83.57 x 58.27 x 78.74 mm
Weight: 548.7 g
Input Voltage: 240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1740 mm
Safety Requirements: --
AVMPE
Adaptor
Dimensions: 81.93 x 56.18 x 85.41 mm
Weight: 542.2 g
Input Voltage: 230 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1760 mm
Safety Requirements: --
AVMPK
Adaptor
Dimensions: 80.83 x 55.37 x 78.10 mm
Weight: 542.7 g
Input Voltage: 110 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1760 mm
Safety Requirements: --
AVMPU
Adaptor
Dimensions: 83.82 x 58.52 x 66.99 mm
Weight: 461.1 g
Input Voltage: 220 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1750 mm
Safety Requirements: --
AVMPSA
Adaptor
Dimensions: 71.61 x 56.05 x 59.46 mm
Weight: 128 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1810 mm
Safety Requirements: --
AVMPSE
Adaptor
Dimensions: 71.21 x 42.47 x 67.46 mm
Weight: 104.4 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1740 mm
Safety Requirements: --
AVMPSS
Adaptor
Dimensions: 71.40 x 49.60 x 49.00 mm
Weight: 115.8 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1820 mm
Safety Requirements: --
AVMPSK
Adaptor
Dimensions: 72.88 x 50.11 x 61.30 mm
Weight: 121.65 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1770 mm
Safety Requirements: --
AVMPSU
Adaptor
Dimensions: 71.26 x 42.39 x 46.82 mm
Weight: 99.4 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1750 mm
Safety Requirements: --


Combo Sets for Choice
Product Code Descriptions Weight (g)
AVHMXA AVHM + AVMPA 651.9
AVHMXE AVHM + AVMPE 645.4
AVHMXK AVHM + AVMPK 645.9
AVHMXU AVHM + AVMPU 564.3
AVHMXSA AVHM + AVMPSA 231.2
AVHMXSE AVHM + AVMPSE 207.6
AVHMXSJ AVHM + AVMPSS 219
AVHMXSK AVHM + AVMPSK 224.85
AVHMXSU AVHM + AVMPSU 202.6
Standard Packaging
Short Code: D06
Dimensions: 28 x 60 x 95 mm
Packing Code: A03-B03-D06
Packing Method
White Box
Short Code: D06
Dimensions: 28 x 60 x 95 mm
Capacity: 1 pc charger
->
Inner Carton Box (MOQ)
Short Code: B03
Dimensions: 170 x 100 x 90 mm
Capacity: 8 x D06
->
Export Carton Box
Short Code: A03
Dimensions: 315 x 195 x 195 mm
Capacity: 6 x B03
1 Export Carton Total: 48 x D06
